IOBAC MagTabs® – Reversible fixings for raised metal access flooring
Magnetic on one side and dry-tack on the other, IOBAC MagTabs® securely fix carpet tiles, woven vinyl or Luxury Vinyl Tiles (4mm thickness and above) to metal raised access floors and other magnetically receptive sub-floors.

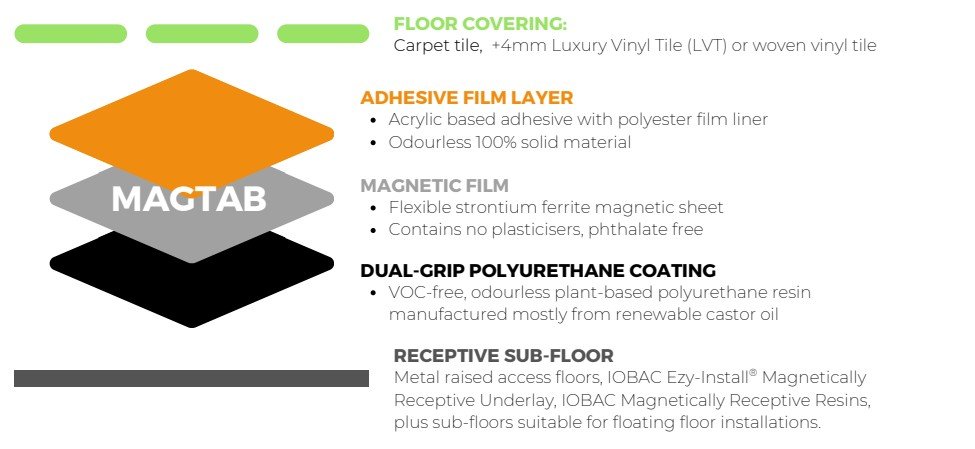

Unique 2-Dimensional Hold – Tiles are locked together horizontally as with conventional floating floor solutions. Plus, our patented Dual-Grip technology combines dry-tack with magnetism to also deliver exceptional vertical hold to the sub-floor.

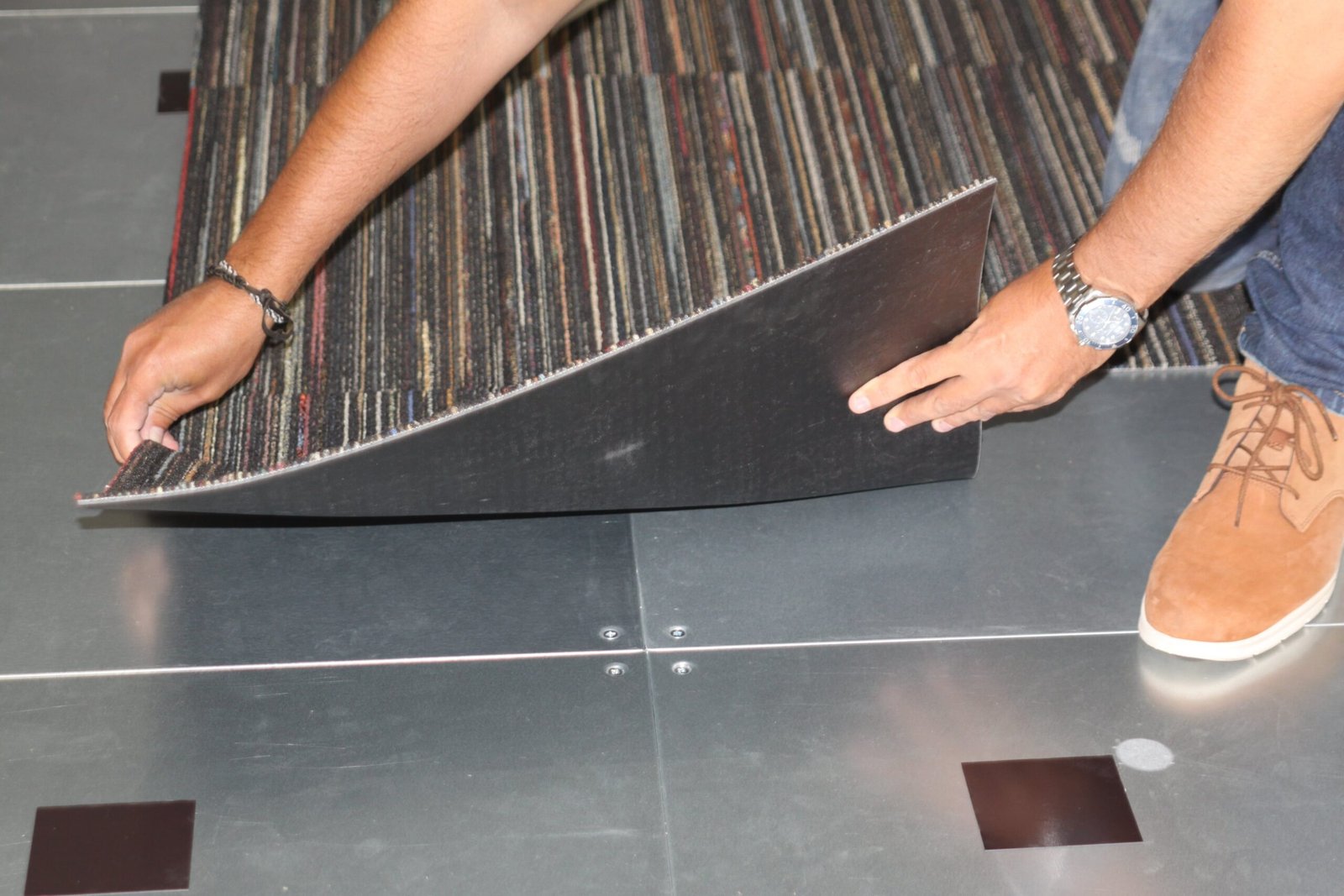

Hard to shift, Easy to lift – Tiles can be uplifted cleanly and easily without damaging the sub-floor or flooring itself, supporting easier reuse and recycling and protecting building assets.
Used and/or approved by 16 leading flooring manufacturers, MagTabs® are proven across a wide range of high profile projects.
ENHANCED CIRCULARITY
– Flooring is more easily reused or recycled via manufacturer take-back schemes, eliminating landfill waste
– Material reuse contributes towards credits in sustainability assessment certifications such as BREEAM, SKA ratings and LEED – Embodied carbon reduced by up to 80% – independent testing demonstrates a lower upfront embodied
carbon vs adhesive, plus potential additional savings in Module D through material reuse
SITE EFFICIENCY
– Quick, odour-free installation with no drying/waiting time required – wet trades eliminated – More efficient programming as trades can work around each other more effectively
– Flooring can be trafficked immediately, minimising disruption to building operations
– VOCs associated with adhesive-based methods eliminated – improved Indoor Air Quality for contractors and occupants
ECONOMIC VALUE
– Asset value of metal raised access flooring retained – Damage, mess, cleaning and remediation costs in between leases eliminated (typically £9-15 per sqm)
– Significantly reduced disposal and dilapidation costs – Material efficiency: 4% coverage vs full-spread materials
– Whole life cost comparison show installation with reversible fixings to be 40% less than traditional methods
DESIGN FLEXIBILITY
– Universally compatible across brands and flooring types – not limited to one type
– Used and/or approved by 16 leading flooring manufacturers of carpet tile, LVT and woven vinyl tile – Seamlessly combine different flooring types and brands in the same space
– Easily deconstruct and repurpose spaces
Compatible Floor Covering Types:
– Carpet tile
– Luxury Vinyl Tile (4mm thickness and above)
– Woven vinyl tile
Compatible Sub-floors:
– Metal raised access floors
– Other magnetically receptive sub-floors including Ezy-Install Underlay and IOBAC Express Cure or High Grab resins
Used and/or approved by:
Downloads:
VOC Emissions Testing
EN16516 tests construction products for emissions into indoor air of regulated dangerous substances such as VOCs, very volatile aldehydes.
Independent testing has confirmed that MagTabs comply with the “Exemplary” criteria on VOC emissions for BREEAM and exceeded all points for LEED specification.
Dimensional Data
– 97 x 97mm square
– 0.3mm thickness (magnetic foil)
– 100 tabs per roll, 12 rolls per case
– Case dimensions – 381 x 254 x 254 mm. Weight – circa 18kg.
Videos
Put to the test: Dual-Grip technology for secure, 2-dimensional hold
Put to the test: MagTabs can be wiped clean of contamination
